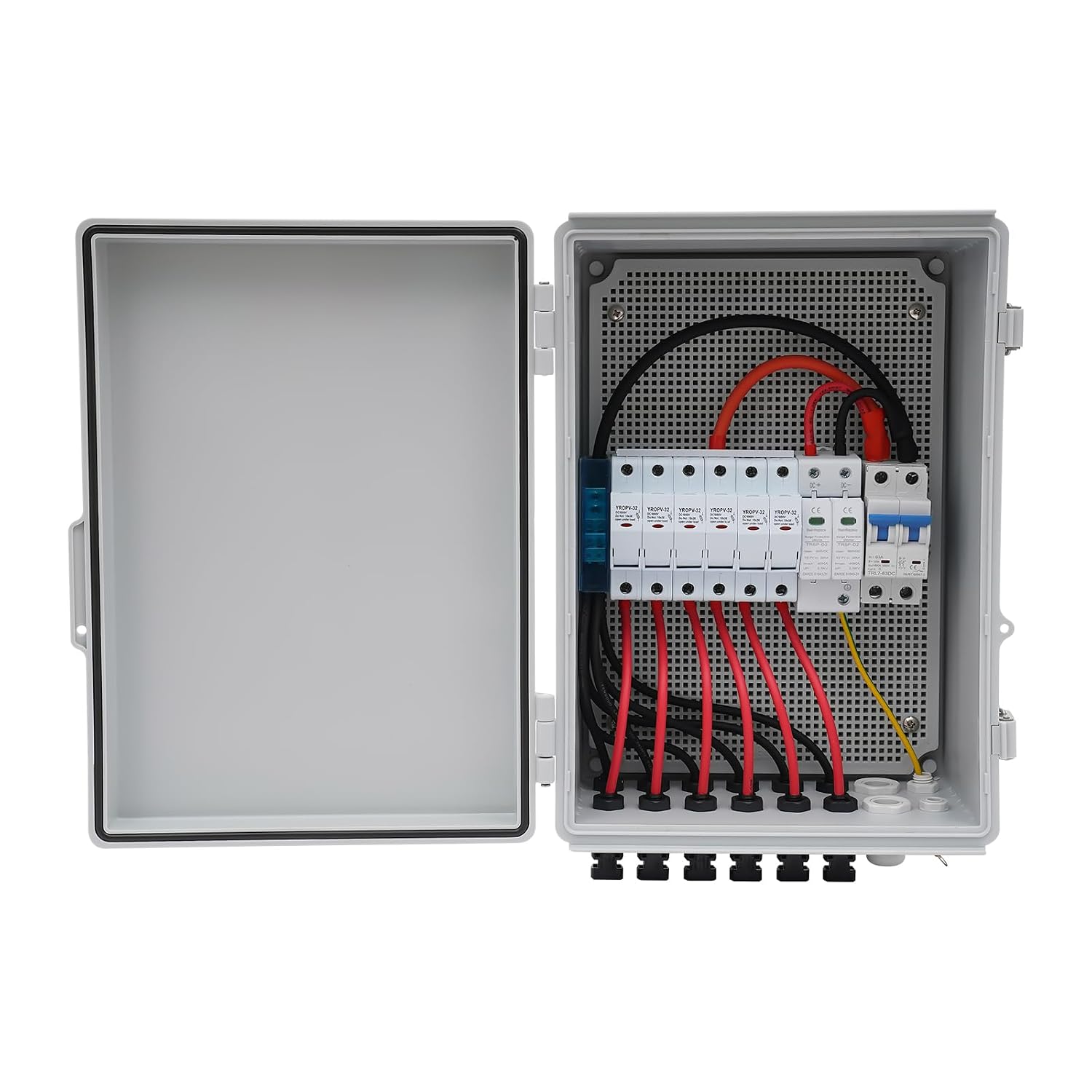

6 String Solar Combiner Box PV Combiner Box with 15A Rated Current Fuse, Surge Protective Device and 63A Air Circuit Breaker for On/Off Grid Solar Panel System (6 String)
Product details
| Management number | 229640668 | Release Date | 2026/05/31 | List Price | US$27.96 | Model Number | 229640668 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification:Color: WhiteMaterial: ABS, PCStyle: ModernCircuit Breaker Type: StandardMounting Type: Wall MountOperating Temperature: -30~70℃/-22~158℉Input: 6 StringsOutput: 1 StringNumber Of Poles: 6Current Rating: 63ANumber Of Max. Connection PV Array: 6Max. Input Current of Single PV Array: 15ATotal Input Current of PV Array: 90AMax Input Voltage of Single PV Array: 1000VMax Output Voltage: 550VProtection Grade: IP65Relative Humidity: 0-95%, No CondensationCooling Method: Natural CoolingNumber of Surge Protection Devices: 1Surge Protection Device: 40KA, 600VNumber of Circuit Breakers: 1Circuit Breaker: 63A, 550VProduct Size: 27*15*39cm/10.6*5.9*15.35inchPackage Size: 35*25*15cm/13.78*9.84*5.9inchNet Weight: 3.2kg/7.05 lbsGross Weight: 3.5kg/7.7 lbsPackage Included:1* PV Combiner Box1* Combination Lock4* Mounting PlatesOther Accessories for Assembly
- JAYEUW professional solar combiner box is engineered for both On-Grid and Off-Grid Photovoltaic Systems, ensuring reliable and safe operation of your solar panel array with comprehensive protection against overloading, short circuits, and reverse currents
- Constructed with a robust metal casing and IP65 waterproof rating, this PV combiner box offers superior durability and weather resistance for long-term outdoor use, far exceeding the lifespan of standard plastic enclosures
- Pre-wired with high-quality solar-specific cables and a built-in grounding connector for easy installation, supporting each PV input array up to 10A/250VDC for seamless solar panel integration
- Equipped with 6 individual 15A fuses (10x38mm) for precise overload protection, safeguarding your solar panels and inverter while optimizing cable management to enhance system efficiency and simplify maintenance
- Features a 63A circuit breaker for short-circuit protection and a visual-alert surge protection device (SPD) that indicates replacement needs via color change, ensuring continuous lightning safety
| ASIN | B0FSD1DB25 |
|---|---|
| Model | YLLNZ |
| Brand Name | JAYEUW |
| Item Weight | 7 Pounds |
| Part Number | 9ZFP-GANYU |
| Manufacturer | JAYEUW |
| Item Dimensions L x W x H | 10.63"L x 6.1"W x 15.1"H |
